| B/F系列產品 | ||||

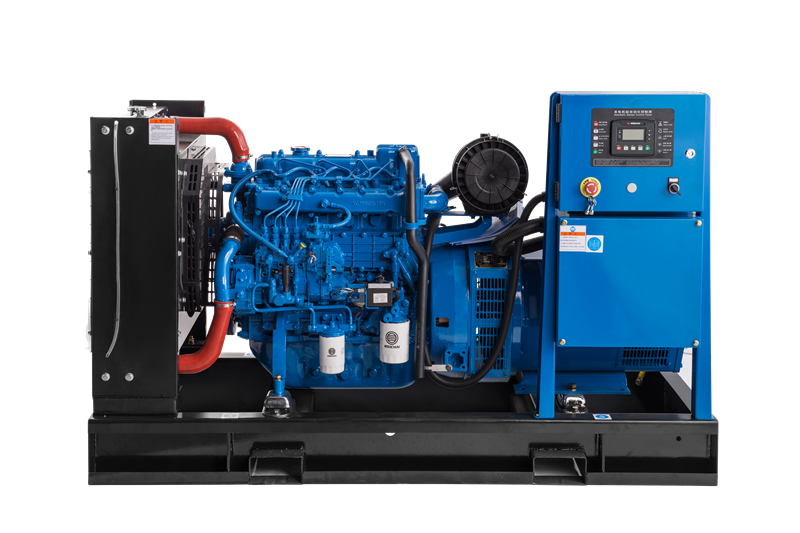

| 1 濰柴全新一代輕型柴油發電機組 Weichai new generation light diesel gen-sets 3 低排放、低噪音，優良的環保性能 Low emissions,low noise,good environmental protection performance 5 適合多種應用場景的結構/功能解決方案 Professional structure/function solution for varieties of scenarios | 2 高可靠性，高功率密度 High reliability,high power density 4 專業的發電機組應用集成能力 Professional application & integration capabilities for gen-sts 6 具備國內各類產品認證資質以及CE認證 Have kinds of domestic product certification and CE certification | |||
| 機組型號Gensets Model | WPG55B1 | WPG68B1 | WPG88B1 | WPG110B1 |
| 額定功率/容量(kW/kVA) Rated Power/Capacity | 40/50 | 50/62.5 | 64/80 | 80/100 |
| 備用功率/容量(kW/kVA) Standby Power/Capacity | 44/55 | 55/68.5 | 70.4/88 | 88/110 |
| 發動機型號Engine Model | WP4.1D66E200 | WP4.1D66E200 | WP4.1D80E200 | WP4.1D100E210 |
| 額定功率(kW)Rated Power | 60 | 60 | 72 | 90 |
| 備用功率（kW）Standby Power | 66 | 66 | 80 | 100 |
| 氣缸數-缸徑×行程 Cylinder No.-Bore×Stroke | 4-105×118 | |||
| 排量（L）Displacement | 4.1 | |||
| 啟動方式Starting Method | DC24V電啟動 Electrical Starting | |||
| 調速方式Speed Governor | 機械調速/電子調速 Mechanical/Electronic | |||
| 進氣方式Intake Way | 渦輪增壓 Turbocharged | 增壓中冷 Turbo＆Inter-cooling | ||
| 機油容量(L)Oil Capacity | 13 | |||
| 冷卻液容量（L） Coolant Capacity | 18 | |||
| 經濟燃油消耗率(g/kW.h) Economic Fuel Consumption | 210 | |||
| 額定電壓（V） Rated Voltage | 400/230 | |||
| 頻率(Hz)Frequency | 50 | |||
| 額定電流(A)Rated Current | 72 | 90 | 115 | 144 |
| 額定功率因數Rated Factor | 0.8（滯后lag） | |||
| 相數及接法 Phase No.& Connection | 三相四線，星型接法 3P4W,Y Style Connection | |||
| 調壓方式 Voltage Regulation Mode | 自動調壓AVR | |||
