| B/F系列產品 | |||||||

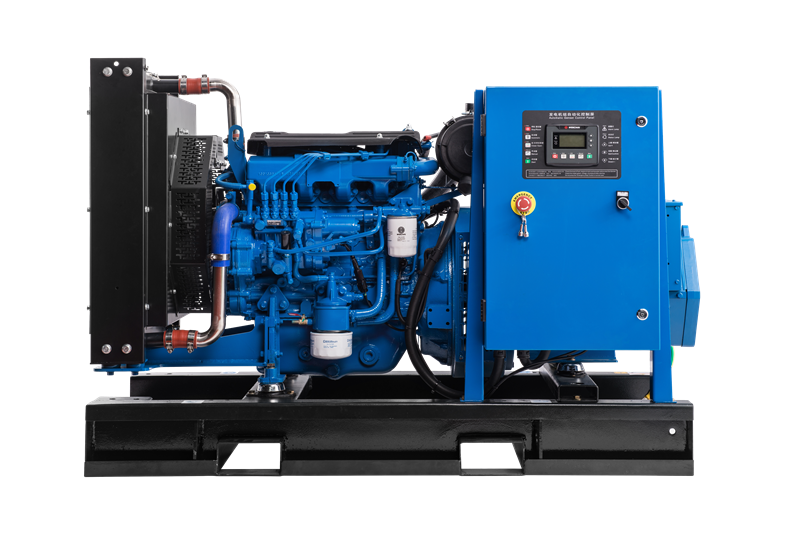

| 1 濰柴全新一代輕型柴油發電機組 Weichai new generation light diesel gen-sets 3 低排放、低噪音，優良的環保性能 Low emissions,low noise,good environmental protection performance 5 適合多種應用場景的結構/功能解決方案 Professional structure/function solution for varieties of scenarios | 2 高可靠性，高功率密度 High reliability,high power density 4 專業的發電機組應用集成能力 Professional application & integration capabilities for gen-sts 6 具備國內各類產品認證資質以及CE認證 Have kinds of domestic product certification and CE certification | ||||||
| 機組型號Gensets Model | WPG13.5B1 | WPG16.5B1 | WPG21B1 | WPG22B1 | WPG27.5B1 | WPG33B1 | WPG41B1 |
| 額定功率/容量(kW/kVA) Rated Power/Capacity | 10/12.5 | 12/15 | 15/19 | 16/20 | 20/25 | 24/30 | 30/37.5 |
| 備用功率/容量(kW/kVA) Standby Power/Capacity | 11/13.5 | 13.2/16.5 | 16.5/21 | 17.6/22 | 22/27.5 | 26.4/33 | 33/41 |
| 發動機型號Engine Model | WP2.1D18E2 | WP2.1D18E2 | WP2.3D25E200 | WP2.3D25E200 | WP2.3D33E200 | WP2.3D33E200 | WP2.3D40E200 |
| 額定功率(kW)Rated Power | 17.5 | 17.5 | 23 | 23 | 30 | 30 | 36 |
| 備用功率（kW）Standby Power | 19.2 | 19.2 | 25 | 25 | 33 | 33 | 40 |
| 氣缸數-缸徑×行程 Cylinder No.-Bore×Stroke | 4-85×92 | 4-89×92 | |||||
| 排量（L）Displacement | 2.1 | 2.3 | |||||
| 啟動方式Starting Method | DC12V電啟動 Electrical Starting | ||||||
| 調速方式Speed Governor | 機械調速/電子調速 Mechanical/Electronic | ||||||
| 進氣方式Intake Way | 自然吸氣 Naturally Aspirated | 自然吸氣 Naturally Aspirated | 渦輪增壓 Turbocharged | ||||
| 機油容量(L)Oil Capacity | 8.5 | ||||||
| 冷卻液容量（L） Coolant Capacity | 11.5 | ||||||
| 經濟燃油消耗率(g/kW.h) Economic Fuel Consumption | 220 | 215 | |||||
| 額定電壓（V） Rated Voltage | 400/230 | ||||||
| 頻率(Hz)Frequency | 50 | ||||||
| 額定電流(A)Rated Current | 18 | 22 | 27 | 29 | 36 | 43 | 54 |
| 額定功率因數Rated Factor | 0.8（滯后lag） | ||||||
| 相數及接法 Phase No.& Connection | 三相四線，星型接法 3P4W,Y Style Connection | ||||||
| 調壓方式 Voltage Regulation Mode | 自動調壓AVR | ||||||
